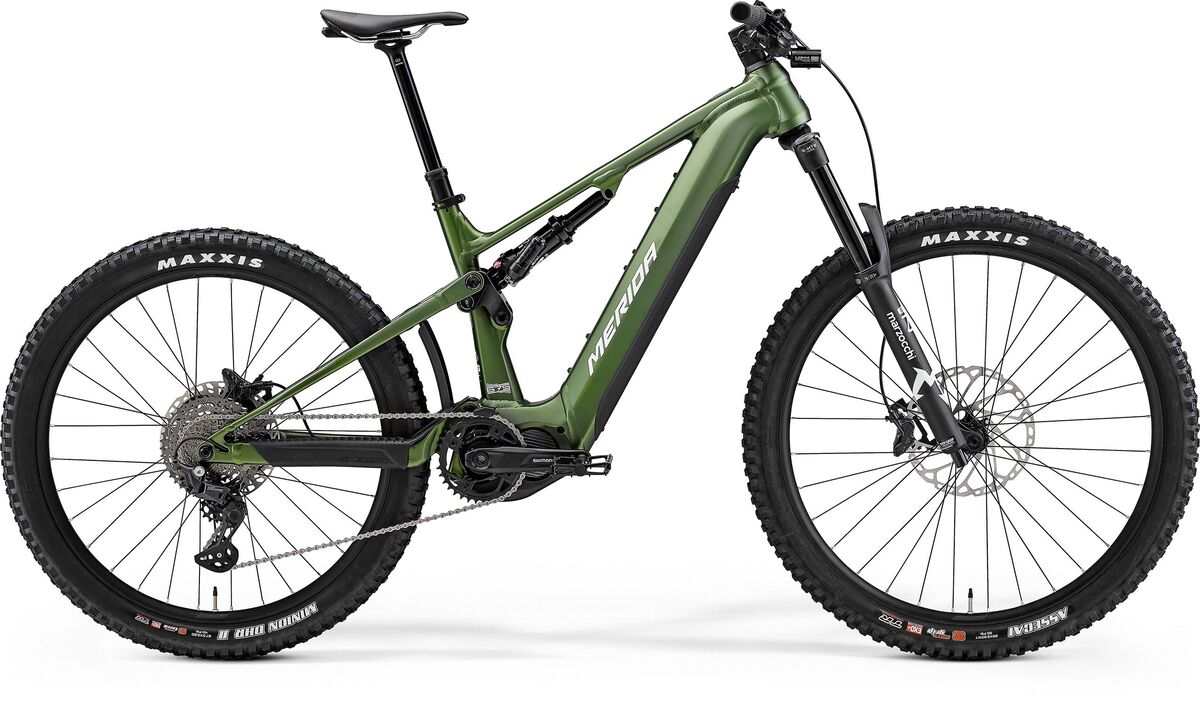

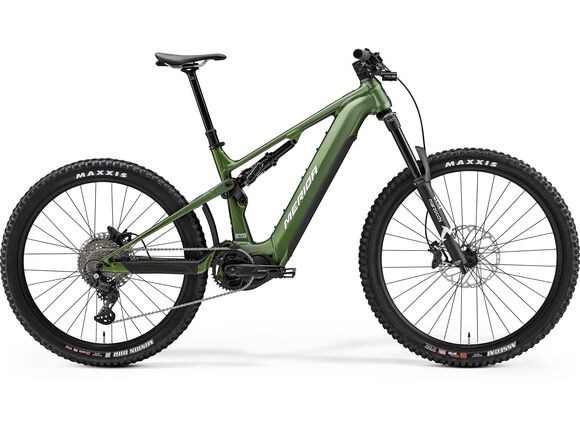

MERIDA eOne-Sixty 675 - Green/White - MY24 2024
Pricing
RRP
Our Price £5500.00
| Model Year | 2024 |
|---|---|
| Options | Short Green/White (Item# 4711256468624 P715) In Stock (Warehouse) Mid Green/White (Item# 4711256468631 P716) In Stock (Warehouse) Long Green/White (Item# 4711256468648 P717) In Stock (Warehouse) XLong Green/White (Item# 4711256468655 P718) In Stock (Warehouse) |
| Style | Our aluminium frame shares the same suspension platform as the carbon models. A Shimano Steps 85Nm EP801 motor is combined with a removable 750WH battery Marzocchi suspension Shimano Deore Linkglide drivetrain Maxxis tyres and a tubeless ready mullet wheelset. With the new eOne-Sixty the next descent is always about to start. Our aluminium frame offersgreat value and maximum battery range thanks to a powerful Shimano EP801 drive unit paired with a removable 750 Wh battery. A 360 Wh range extender is available separately. The only reason to stop will be because you have to. Our capable uodated geometry has been influenced by the success of the original eOne-Sixty and the award winning One-Sixty; its handling will help conquer the toughest of climbs and the steepest descents. Our proven FAST kinematic suspension will take care of anything the trail throws at it. Our low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Our flip chip design enables you to run with mixed size 29 front and 27.5 rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails. |
| Frame | Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6" |
| Forks | Fork Marzocchi Z1 eMTB; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.6" Shock Marzocchi Bomber Air; platform |
| Rear Derailleur | Shimano XT RDM5130 LinkGlide 10 speed |
| Shifters | Shimano XT M5130 and Shimano SL -MT500-IL dropper lever |
| Chainset | FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | Shimano LG500 |
| Freewheel/Cassette | Shimano LG400; 11-43 teeth; 10 Speed |
| Headset | Acros ICR Merida external neck w/ Blocklock |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point. |
| Handlebars | Merida Expert eTR; 780mm wide; 20mm rise |
| Front Brake | Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor |
| Rear Brake | Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT-EM910 203mm rotor |
| Brake Levers | Shimano Deore |
| Rims | Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
| Front Hub | Shimano TC500-B; 110 x 15mm; 32 spokes; Centerlock |
| Rear Hub | Shimano TC600-HM-B; 148 x 12mm; 32 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key |
| Spokes | Black stainless |
| Tyres | Front Tyre Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip Rear Tyre Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR |
| Saddle | Merida Expert CC with V-mount |
| Seatpost | Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm - S: 150mm - M/L/XL: 200mm seat post travel |
| Pedals | VP Components - VPE-527 |
| Grips | Merida Expert EC |
| Miscellaneous | Front Light Lezyne Power STVZO E115, reverse Merida Custom Mount Rear Light Lezyne LED FEMTO USB REAR STVZO Trend Power On-bike charging cable |
| Motor | Shimano Steps EP801; 85Nm |
| Battery | Simplo Trend Power Internal Battery Gen 2; 750Wh Charger Trend Power Simplo EU Charger; 4A |
| Controls | eBike Display Shimano SC-EM800 Power Button Shimano satellite system on/off; EWSW310 Mode Switch Shimano SW-EM800-L |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
