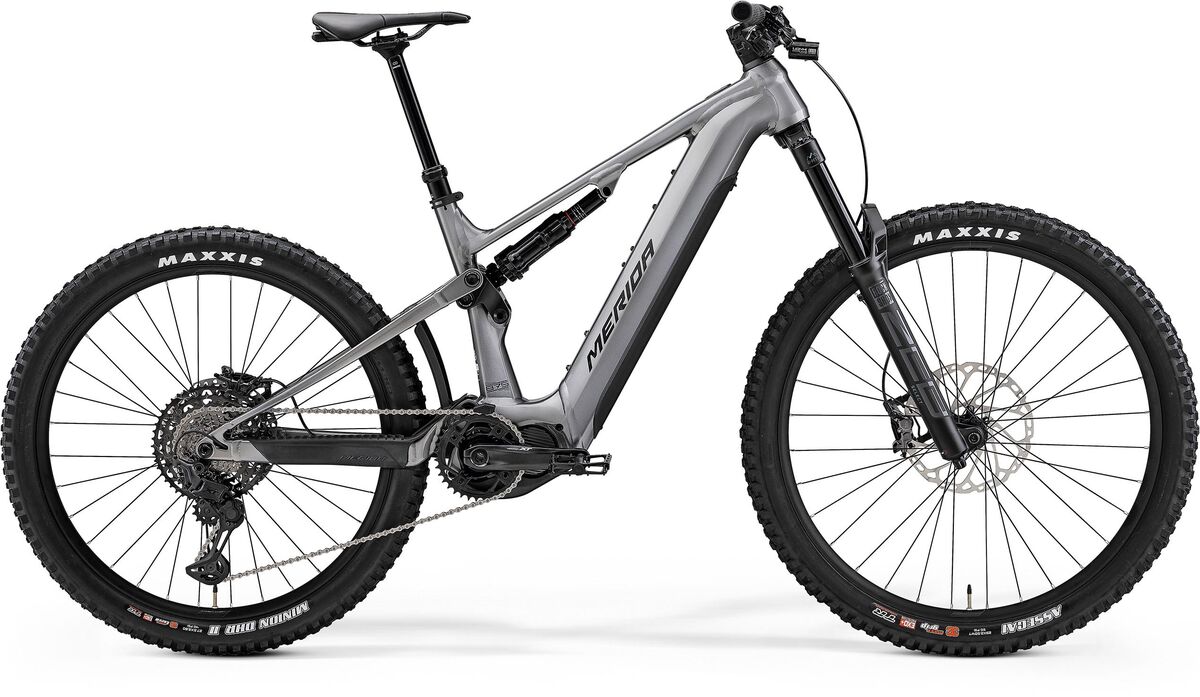

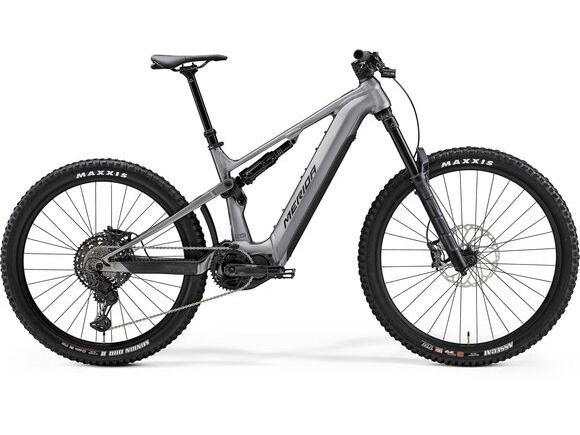

MERIDA eOne-Sixty 875 - Grey/Black - MY24 2024
Pricing
RRP
Our Price £6000.00
| Model Year | 2024 |
|---|---|
| Options | Short Grey/Black (Item# 4711256468945 P725) In Stock (Warehouse) Mid Grey/Black (Item# 4711256468952 P726) In Stock (Warehouse) Long Grey/Black (Item# 4711256468969 P727) In Stock (Warehouse) XLong Grey/Black (Item# 4711256468976 P728) In Stock (Warehouse) |
| Style | Our LITE aluminium frame is equipped with a Shimano Steps 85Nm EP801 motor and a removable 750 Wh battery RockShox Zeb fork with 170mm travel and Super Deluxe shock Shimano componentry Maxxis tyres and a tubeless ready mullet wheelset With the new eOne-Sixty the next descent is always about to start. Our aluminium frame offersgreat value and maximum battery range thanks to a powerful Shimano EP801 drive unit paired with a removable 750 Wh battery. A 360 Wh range extender is available separately. The only reason to stop will be because you have to. Our capable uodated geometry has been influenced by the success of the original eOne-Sixty and the award winning One-Sixty; its handling will help conquer the toughest of climbs and the steepest descents. Our proven FAST kinematic suspension will take care of anything the trail throws at it. Our low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Our flip chip design enables you to run with mixed size 29 front and 27.5 rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails. Thanks to our 30-230 mm travel-adjustable dropper post you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you. |
| Frame | Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6" |
| Forks | Shock RockShox Super Deluxe Select Fork RockShox ZEB Select; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.8" |
| Rear Derailleur | Shimano XT RDM8130 LinkGlide 11 speed |
| Shifters | Shimano XT M8130 and Shimano SL -MT500-IL dropper lever |
| Chainset | FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-E8150 165mm length crank all sizes with MRP 1x chainguide |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | Shimano LG500 |
| Freewheel/Cassette | Shimano LG700; 10-50 teeth; 11 Speed |
| Headset | Acros ICR Merida external neck w/ Blocklock |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point. |
| Handlebars | Merida Expert eTR; 780mm wide; 20mm rise |
| Front Brake | Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor |
| Rear Brake | Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT-EM600 203mm rotor |
| Brake Levers | Shimano XT |
| Rims | Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
| Front Hub | Shimano XT; 110 x 15mm; 32 spokes; Centerlock |
| Rear Hub | Shimano XT; 148 x 12mm, 32 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key |
| Spokes | Black stainless |
| Tyres | Front Tyre Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip Rear Tyre Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR |
| Saddle | Proxim W400 STN with V-mount adapter; including Merida minitool |
| Seatpost | Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel |
| Pedals | VP Components - VPE-527 |
| Grips | Merida Expert EC |
| Miscellaneous | Front Light Lezyne Power STVZO E115, reverse Merida Custom Mount Rear Light Lezyne LED FEMTO USB REAR STVZO Trend Power On-bike charging cable |
| Motor | Shimano Steps EP801; 85Nm |
| Battery | Simplo Trend Power Internal Battery Gen 2; 750Wh Charger Trend Power Simplo EU Charger; 4A |
| Controls | eBike Display Shimano SC-EM800 Power Button Shimano satellite system on/off; EWSW310 Mode Switch Shimano SW-EM800-L |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
